Crank Case Assembly

TVS Kings

Crank Case Assembly

54 parts in this figure

Parts (54)

Hex Fl Bolt M6X10

Hex Flange Bolt M6X25 Oil Pump Mtg

Ball Bearing 35X62X9 #16007

Ratchet Hand Start

Shim 20X32X1.5 Hs

Sealing Washer

Spring Ratchet Hand Start

Ball Bearing 35X72X17 C3 6206Cs L

Circlip HS

Hex Screw M6X12 8.8 2nb

Shim 28X38X1.0

Ball Bearing 6207R

Gear Hand Start

Hex Fl Bolt - M6X50

Hex Fl Bolt M6X16 Oil Pump Mtg

Oil Seal Differential

Shaft Hand Start

Needle Cage 28X33X13 Hs Shaft

Spring Hand Start

Punched washer 18X39X3 HS Shaft

Stud Bolt Cyl Head

Hex Bolt M8X35 Starter Motor Mtg

Starter motor new (ph,2.2)

Brkt, Mtg Starter Motor

Fixing bracket assy

Bendix drive assy (Ph 2.2)

Stopper Oil seal

Inter bracket (Ph 2.2)

4S Gear Final Drive 22 Teeth

Armature Coil assy (Ph 2.2)

Brush box kit

Crankcase R 4S

Ball Bearing 20X42X12 C3 6004

Retainer Bearing

Ball Bearing 17X35X10 C3 6003

Needle Roller Bearing 18X24X14 Counter Shaft

Oil Pump Assy

Kit Crankcase Comp R - 4S (Ni)

Kit Crankcase Comp L - 4S (Ni)

Ball Bearing 25x52x15

Shaft Gear Weight Cover

Plug comp, Oil

Crankcase L 4S

Sprocket, 25T

Hex Screw M5X10 8.8 Sprocket Oil Pump Mtg

Washer Sprocket Oil Pump Mtg

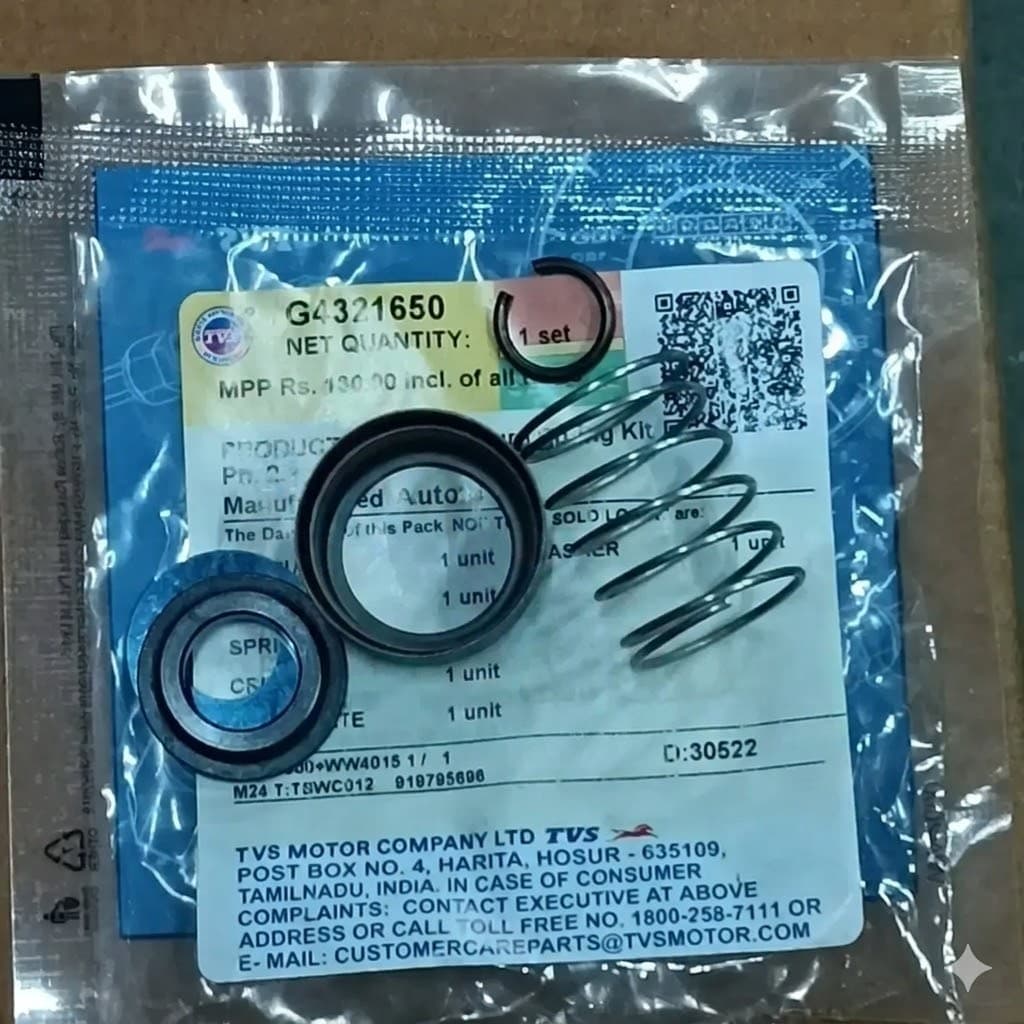

Pinion Return Spring Kit

Pinion Return Spring Kit

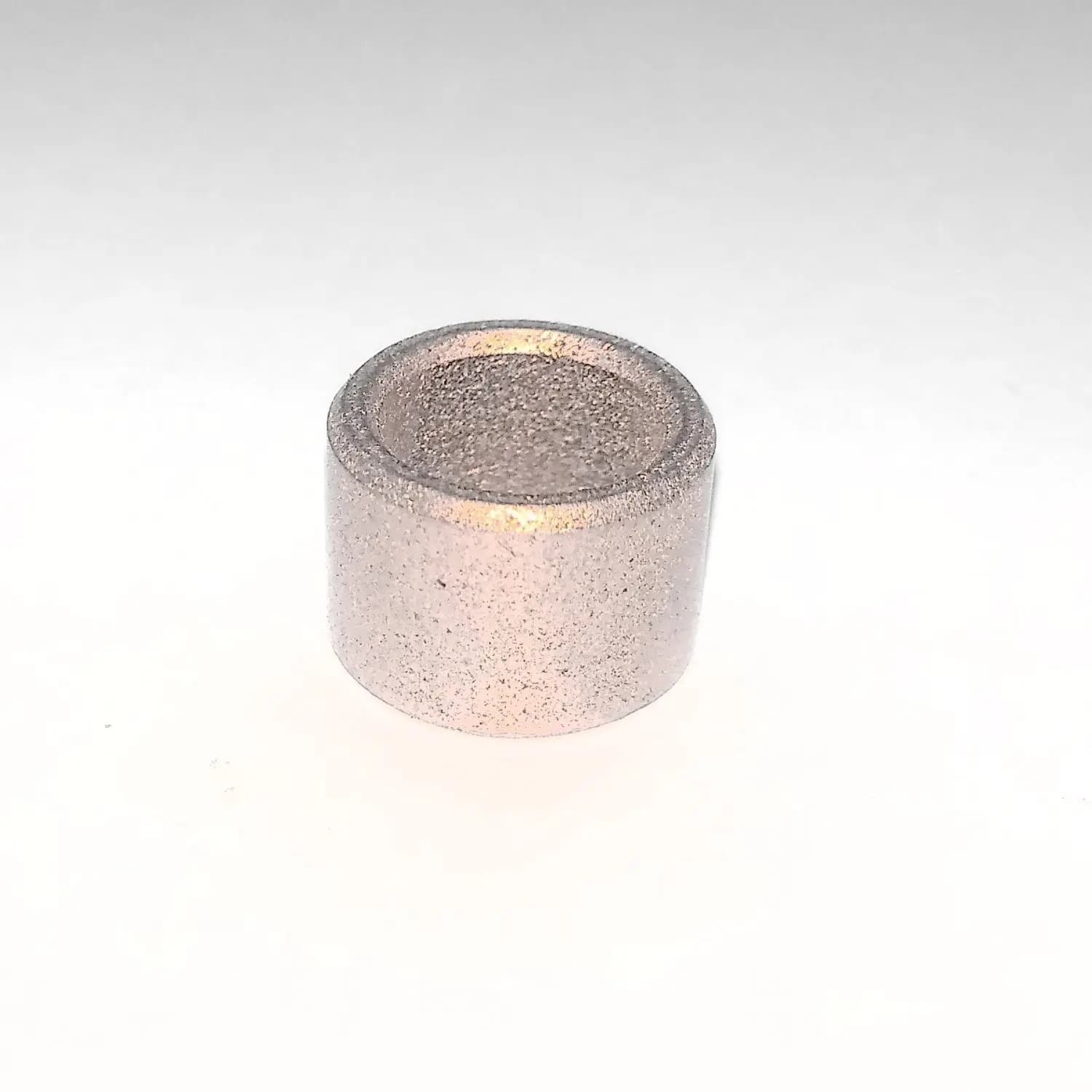

Bush Bendix R

Bush Bendix R

Gasket Crank Case

Gasket Crank Case

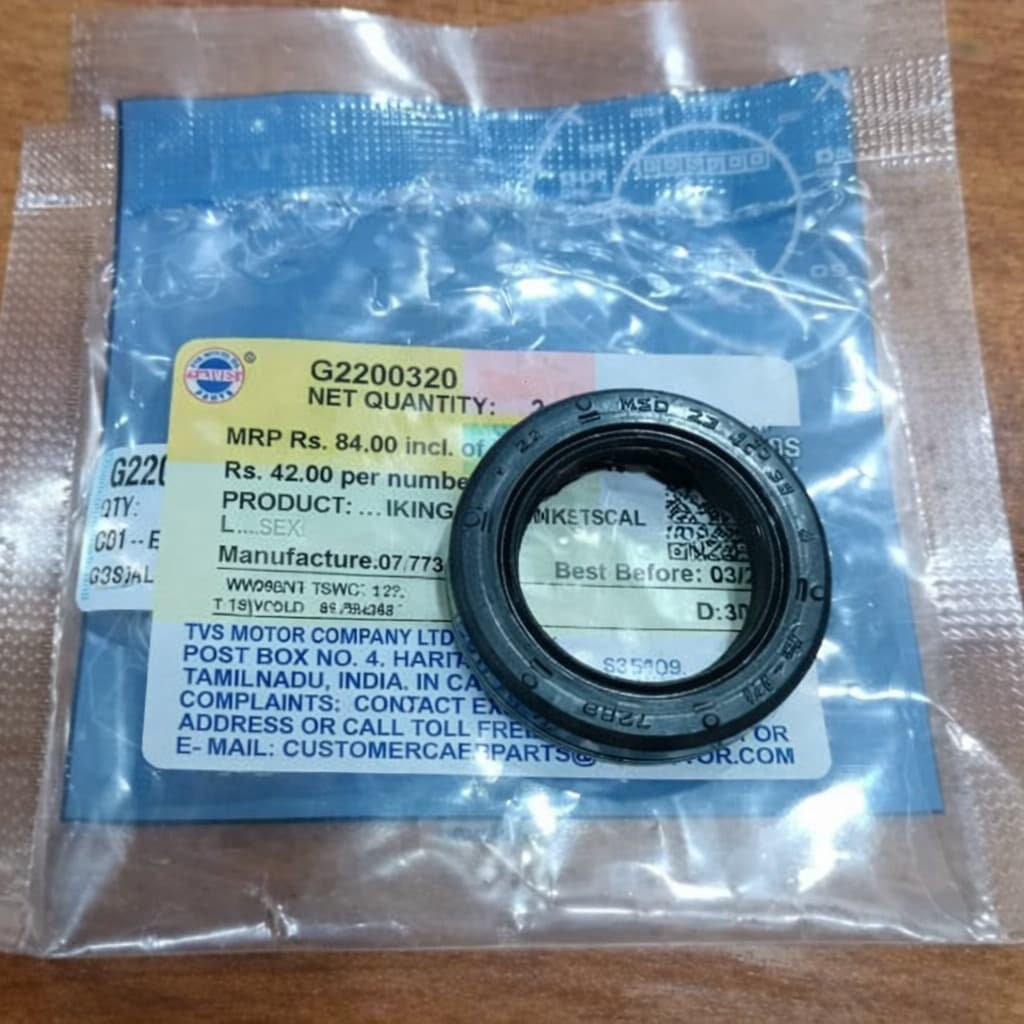

Oil seal crankshaft L

Oil seal crankshaft L

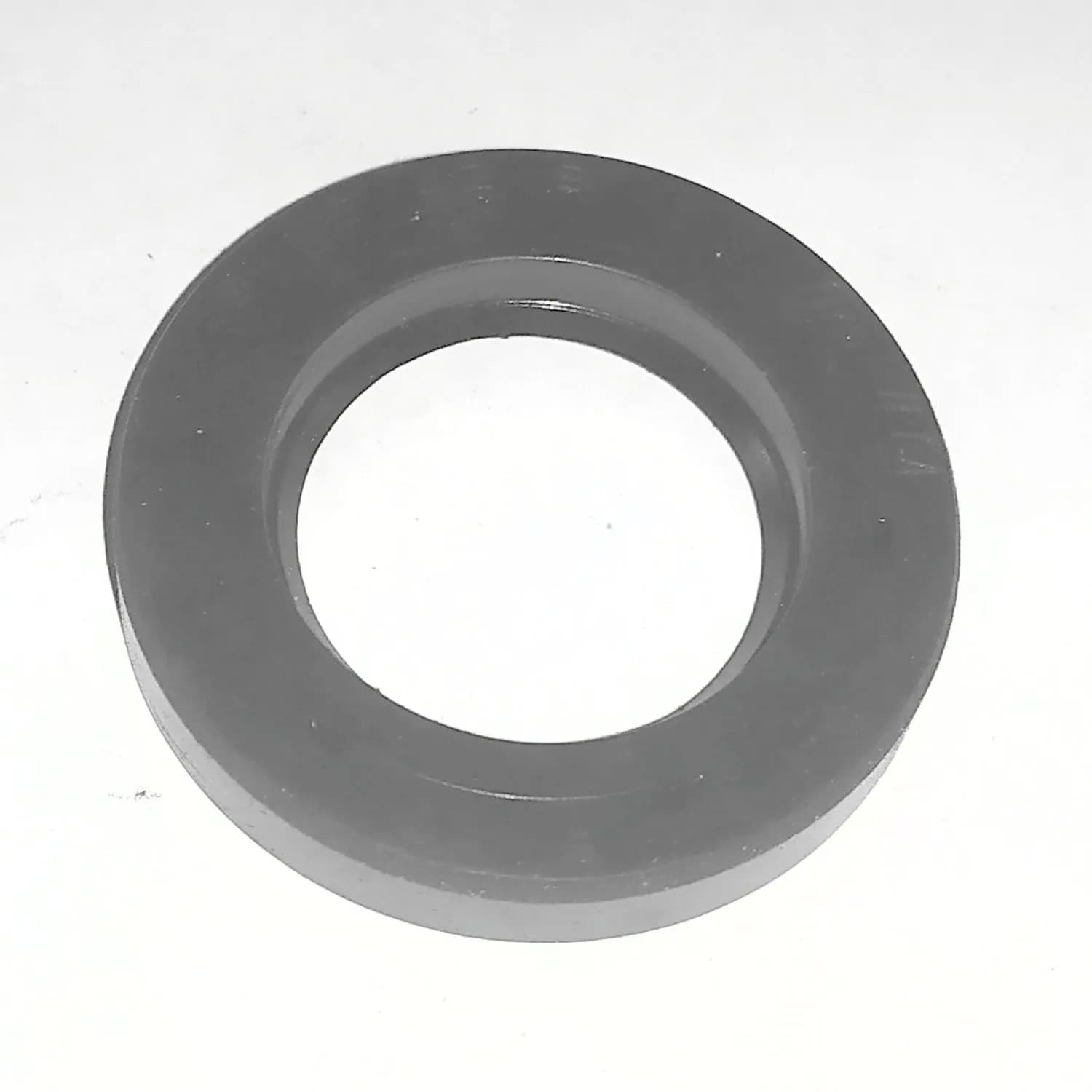

Oil Seal Drive Shaft

Oil Seal Drive Shaft

Hex Flange Bolt M6X75 CCLH

Hex Flange Bolt M6X95

Oil Seal Kick starter Shaft
