PASSENGER BODY & ELECTRICALS

TVS Kings

PASSENGER BODY & ELECTRICALS

88 parts in this figure

Parts (88)

Wave Spring Washer M6 Handle Soft Top

Hex Screw M6X16 8.8 Handle Soft Top

Mud Flap

Wave Spring Washer M8 Cabin Mtg

Punched Washer 8.5 X20X2.0

Packing Chassis Cabin

Hex Nut M6 Zng Splash Guard Mtg

Punched Washer Rr Unit Mtg

Hex FI Bolt M6X16 Splash Guard

Hex Screw M5X 20 Rr Unit Mtg

Split Pin 2.0X20 Tail Door And Fuel Lid

Washer Tail Door & Lid Fuel Tank Mtg

Grommet 20X16 Cabin LH Luggage Area

Fuse 2A (Ni)

Hex Screw M8 X 1.25 X 25

Knob M5

Tail Door Assy Black

Packing Floor Cabin

Tail Door Assy Black Mesh Type (Ni)

Lock Assy Tail Door

Number Plate - Golden Yellow

Lock Assy Tail Door Mesh Type (Ni)

Relay Head Lamp BSIV

Pin Hinge Tail Door

Mud Flap Mtg Bracket New (Ni)

Edge Trim, Lid Fuel Tank

Lock Assy Fuel Tank Lid

Cover TCI BSIII

Pin Hinge Fuel Tank

Cover TCI BSIV

Grommet Tail Door

Ignition Coil Assy 4S

FUSE 20 A BLADE BSIV

Ring Knob Tail Door

Hinge Fuel Tank

Bumper Comp. Yellow (Ni)

RR Unit BSIII

Side Panel Handle Soft Top Belt

Regulator Cum Rectifier 3

Digital TCI Unit - 4S BSIII

4SL/C/LSMQVH: 1

Lid Comp Fuel Tank Yellow

Digital TCI Unit - 4S BSIII (Ni)

Plate Mud Flap

Digital TCI Unit - 4S BS IV HP (Ni)

Passenger Cabin Black

Fuse 15 Amps (Ni) BSIII

Cabin LPG/CNG Single Mode Green (Ni)

Fuse 5A (Ni)

Sticker LS+LPG (Ni)

Sticker ZS+ CNG (Ni)

Relay Starter Motor New

Sticker BSIV (Ni)

Cord Set, Starter Relay (Red). BSIV

Sticker (AC) Mesh Type (Ni)

Kit Chassis Mtd Bumper

Rear Mudguard LH

Stay Bumper Mtg Comp.

Rear Mudguard RH

Cover Tail Lamp

Wave Spring Washer M8

Grommet,Dia20 Cut Out Bumper

Wiring Harness, Front -4S LPG/CNG BSIII

4SL/C/LSMQVH: 1

Car Safety Unit Old

Wiring Harness, Front 4S Petrol (Ni) BSIII

Ignition Coil W/O Suppressor Cap

Wiring Harness, Front 4S LPG/CNG BSIV (Ni)

Cord Ignition Coil

Wiring Harness, Front 4S Petrol (Ni) BSIV

Seal H.T. Cord

Wiring Harness, Rear -4S LPG/CNG BSIII

4SL/C/LSMQVH: 1

Suppresser Cap

Wiring Harness, Rear - 4S Petrol (Ni) BSIII

Bracket Side Panel L

Wiring Harness, Rear -4S LPG/CNG BSIV (Ni)

Bracket Side Panel R

Wiring Harness, Rear - 4S Petrol (Ni) BSIV

Hex Fl. Bolt M6X 20 RR Unit Mounting BSIV (Ni)

Hex Screw M5 Tail Door Knob

Punched Washer 8.5 X 25 X 2

Hex. Screw M8x20

Deluxe Sticker - LH (Ni)

Deluxe Sticker - LH (Ni)

Deluxe Sticker - RH (Ni)

Deluxe Sticker - RH (Ni)

Sticker GS+ Petrol (Ni)

Sticker GS+ Petrol (Ni)

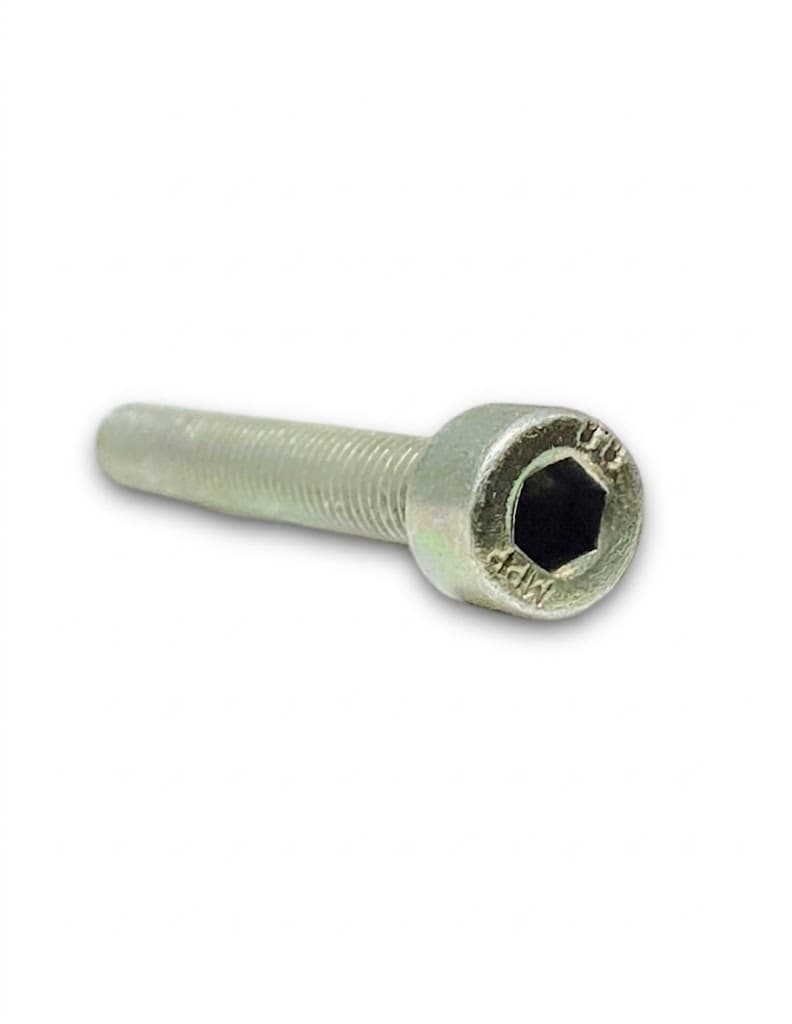

Tail Door Allen Screw M5X35

Tail Door Allen Screw M5X35

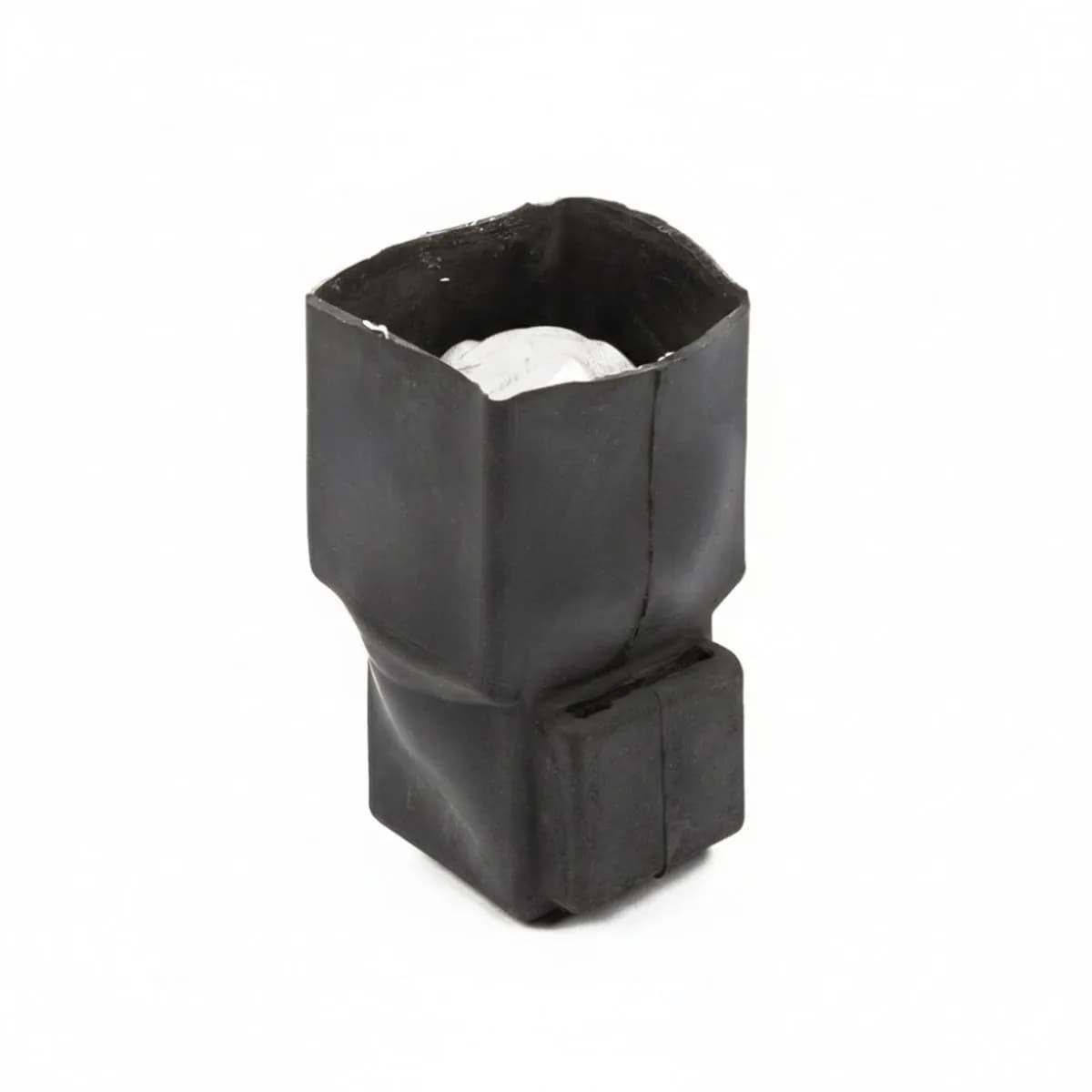

Boot Starter Relay

Boot Starter Relay

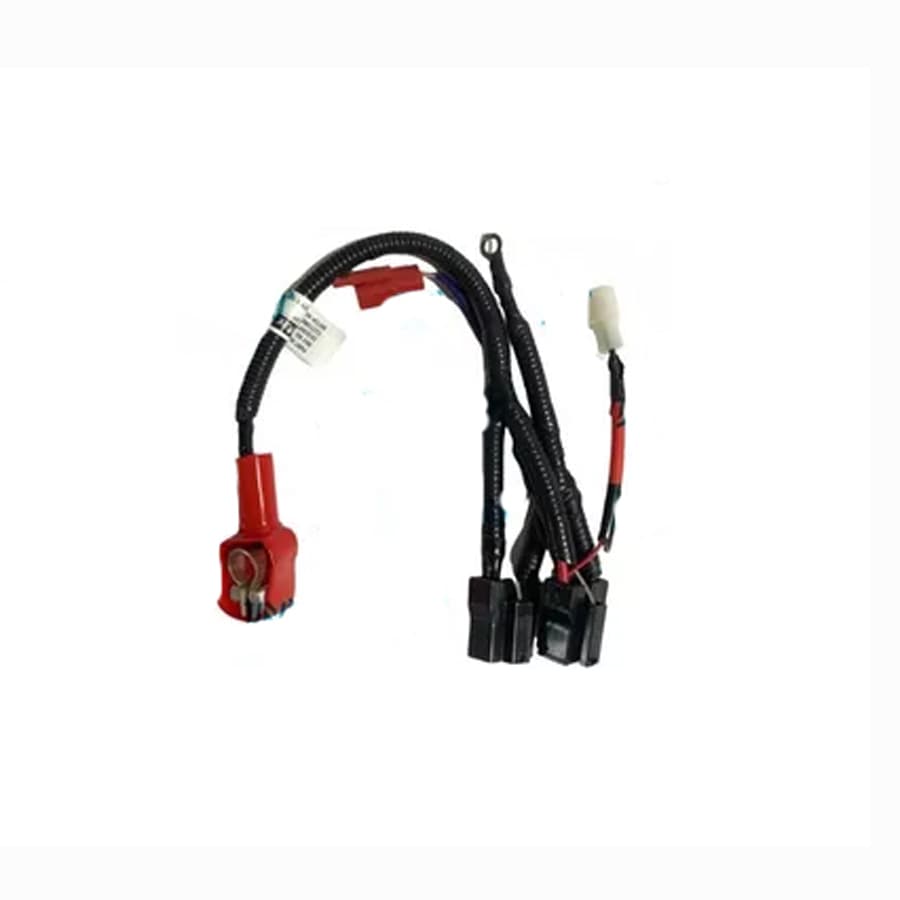

Cord Set, Starter Relay (Red). BSIII

Cord Set, Starter Relay (Red). BSIII

Cord Set, Starter Motor Black

Cord Set, Starter Motor Black

Starter Relay Assy

Starter Relay Assy
