DIFFERENTIAL ASSEMBLY

TVS Kings

DIFFERENTIAL ASSEMBLY

36 parts in this figure

Parts (36)

Hex Screw M8X20 Muff Cup Eng Mtg

Lock Plate Comp

Cap Engine Side Fare Meter

Lock Plate Differential 3 Wheeler

Hex Screw M10X1.25X20 Differential Lock Mtg

Bevel Gear - New

Housing Comp Differential 3 Wheeler

Pin Satellite Gear 3 Wheeler

Lock Pin Satellite Gear 3 Wheeler

Gear Final Driven 4 Stroke

Shim Differential Housing 3 Wheeler

Sattelite Gear - New

Damper Head Start

Bevel Gear 3 Wheeler - Old

Muff Cup Engine

Satellite Gear 3 Wheeler - Old

Bush Housing Differential 3 Wheeler

Differential Assy

Plug Tdc Oil Drain & Filling Bolt

Protector Plug (FM)

Pipe Breather

O Ring ENG SPRKT SPACR

Gasket Cover Differential

Cover Differential

Tubular Dowel 10X12

Oil Seal 8X19X5 (Fare Meter Oil Seal)

Dual Seal 18X27X6

Sealing Washer Oil Drain & Filling Bolt

Hex Screw M6X12 (Oil Lever Screw)

Hex FI Bolt M6X16 Cap Fare Meter Mtg

Hex FI Bolt M6X50 Damper Mtg

Ball Bearing 35X62X9 #16007

Oil seal Differential

Hook Kick Starter Shaft Spring

Hook Kick Starter Shaft Spring

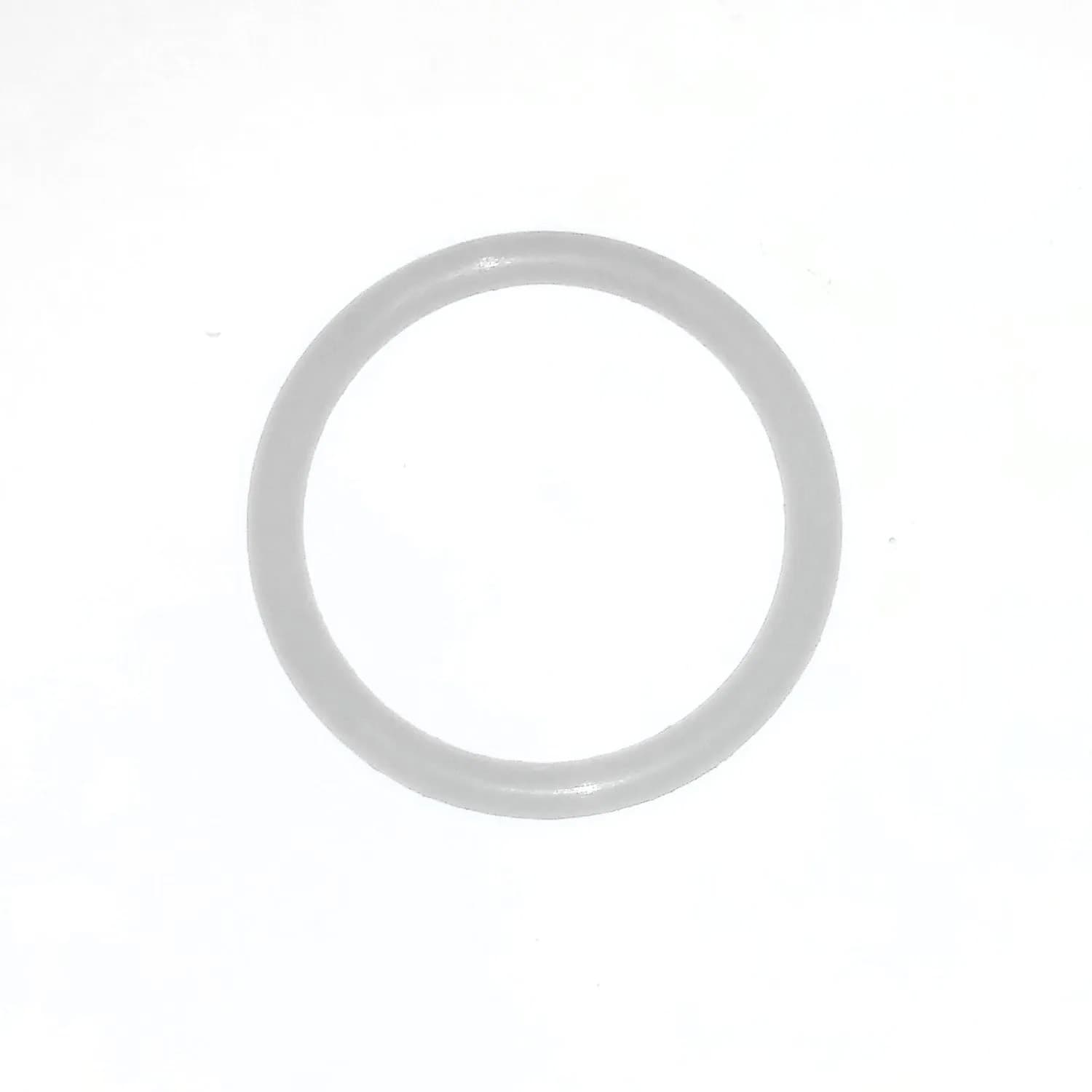

O Ring Neutral Switch

O Ring Neutral Switch

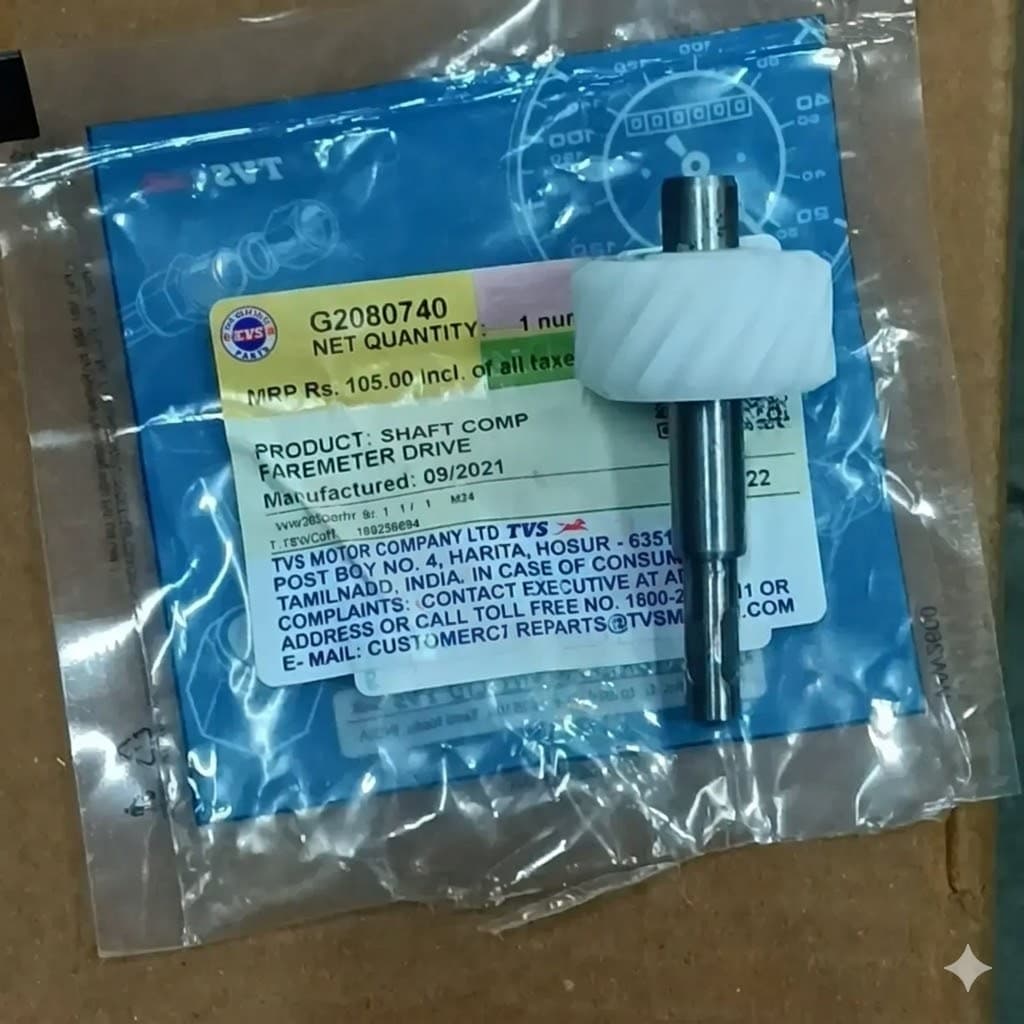

Shaft Comp Fare meter Drive

Shaft Comp Fare meter Drive
