CYLINDER HEAD ASSEMBLY

TVS Kings

CYLINDER HEAD ASSEMBLY

54 parts in this figure

Parts (54)

Insulator Pad

Hex Flange Nut M6

Stud, Bolt, MS, Muffler mtg

Hex Screw M6X10.5 P

Pipe Intake Comp P/CNG

Pipe Intake Comp LPG

Gasket Pipe Intake

O Ring Pipe Intake

Hex Flange Bolt M6X20 Intake

O Ring Neutral Switch

Shaft Rocker Arm

Cotter Valve

Arm Rocker Valve (Roller) Assy

Punched Washer 8.5X18X2.3 Cy Head

Domed Nut With Flange M8 Cy.Head

Cap Inspection Hole

Gasket Cyl Head Nut ( Copper Washer)

Cover Cylinder Head

Gasket Cyl Head Cover Bolt Copper Washer

Spring Valve Outer

Pipe Intake Comp Exp. (Ni)

Hex Nut M8-1.25 Cy.Head

Washer Cam Chain Tensioner

Spark Plug 4S

Cowl Comp , Top Air Cooling

Cylinder Head Assy NP. 049

Spring Valve Inner

Hex Flange Bolt M6X45

Hex Flange Bolt M6X35

Plug Rocker Shaft

Gasket Breather Plug

Retainer Valve Spring

Pin Sprocket Knock

Cam Shaft Comp (RP) BSIII

Cam Shaft Comp (HP) BSIV

C-Ring Camshaft

Washer Sprocket

Plug Cylinder Head

Screw Tappet Adjuster

Nut Tappet Adjuster

Valve Guide

Tabular Dowel Cy Head & Block

Hex Flange Bolt M6X122

Hex Flange Bolt M6X25

Stud Bolt Cyl Head

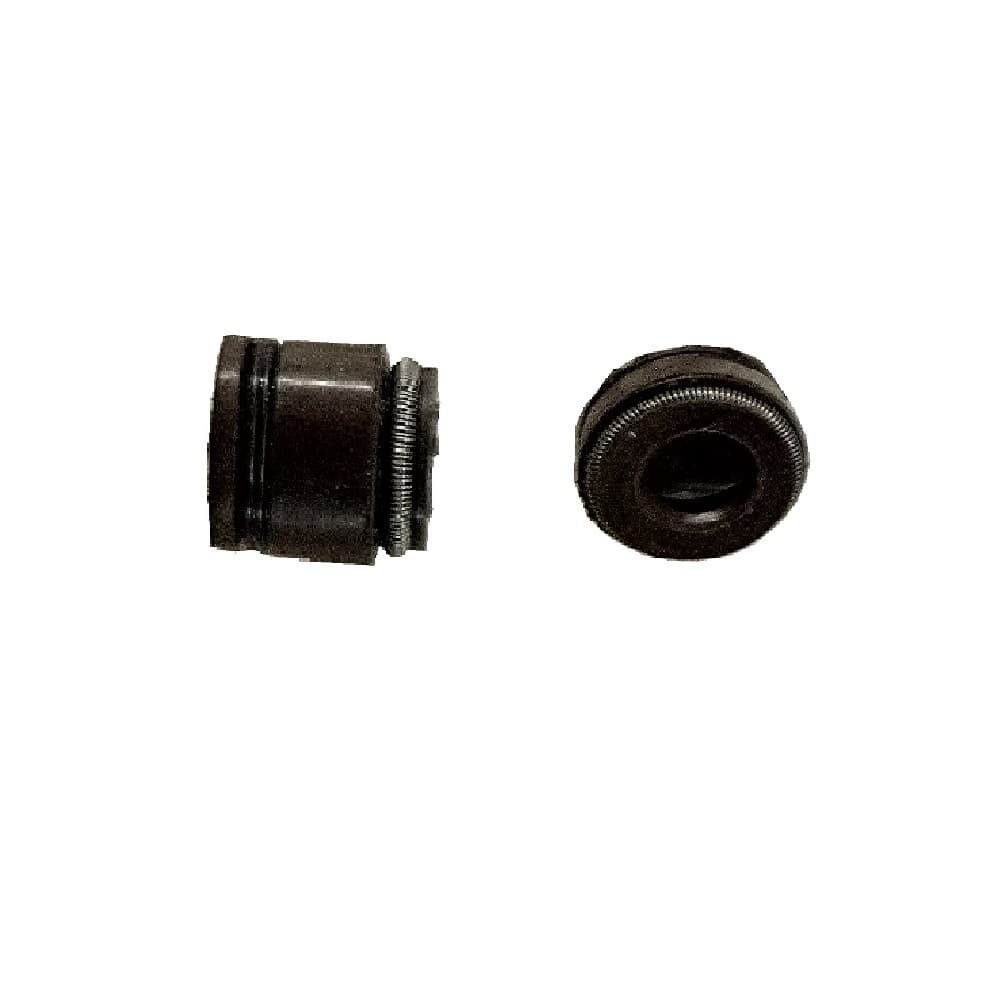

Seal Valve Stem Oil

Seal Valve Stem Oil

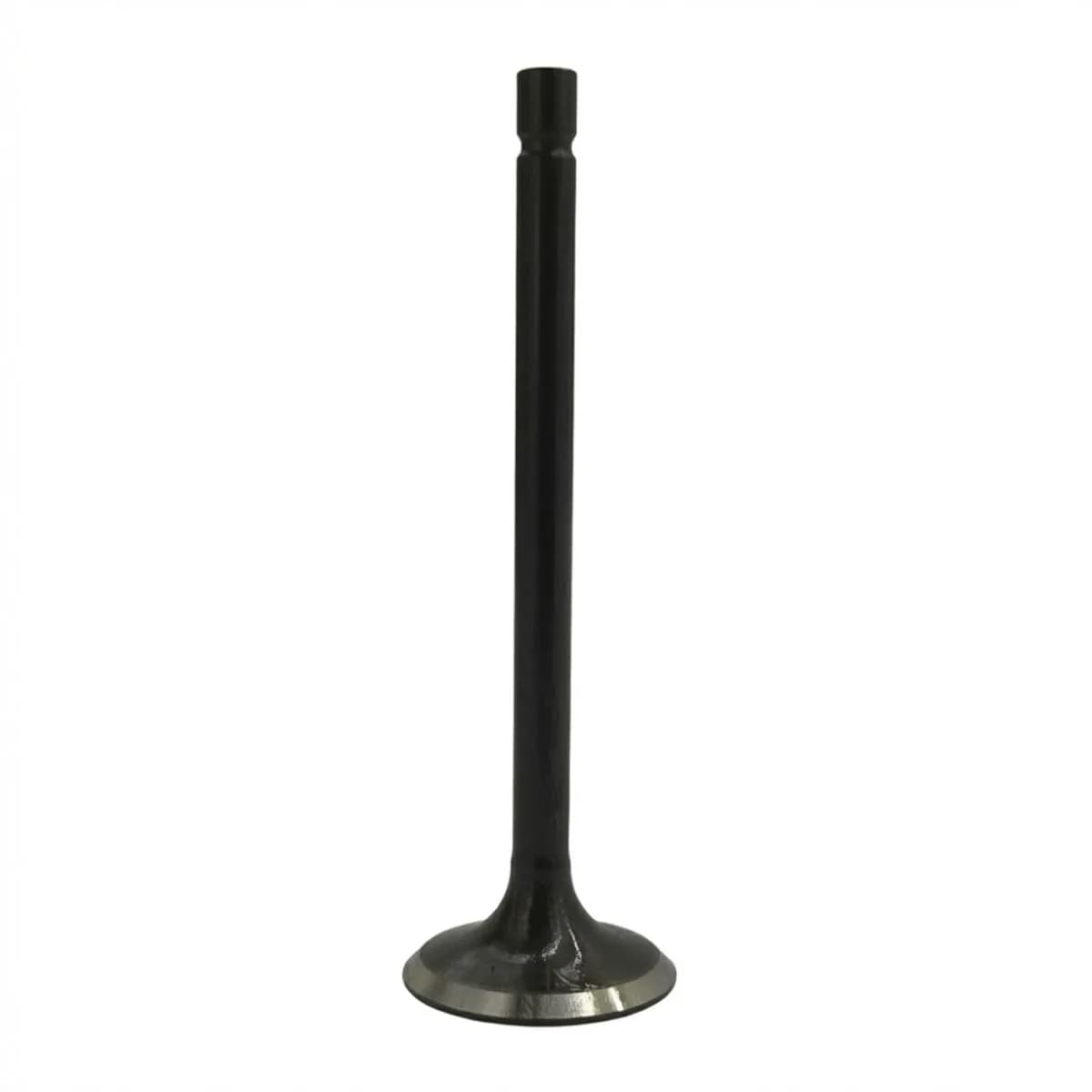

Valve Exhaust

Valve Exhaust

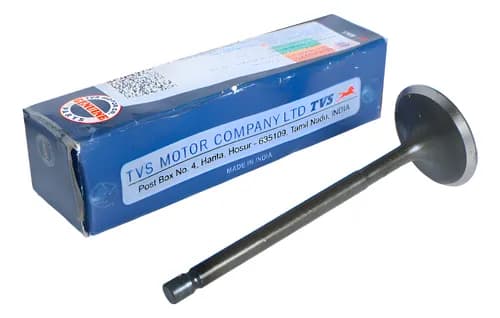

Valve Intake

Valve Intake

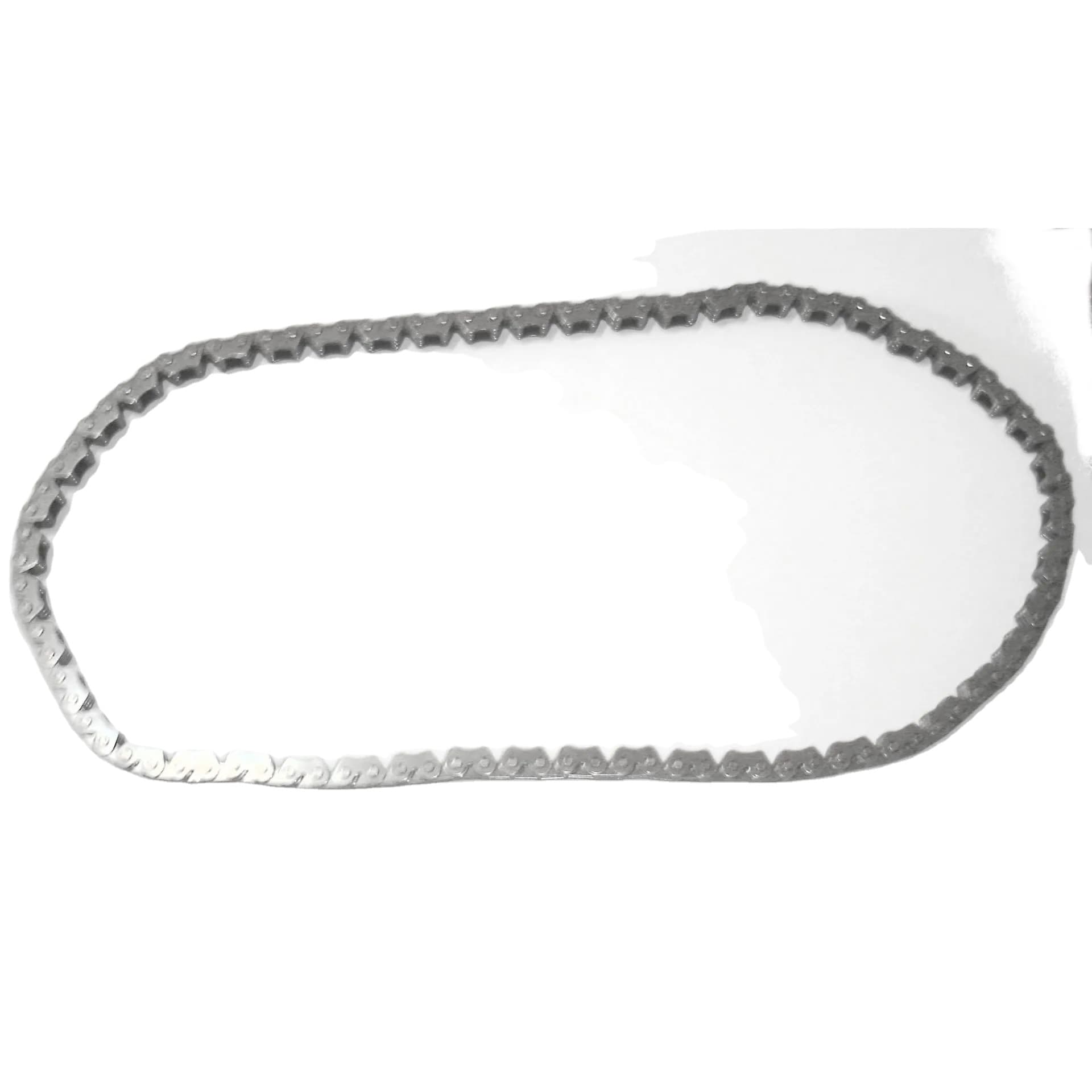

Cam Chain

Cam Chain

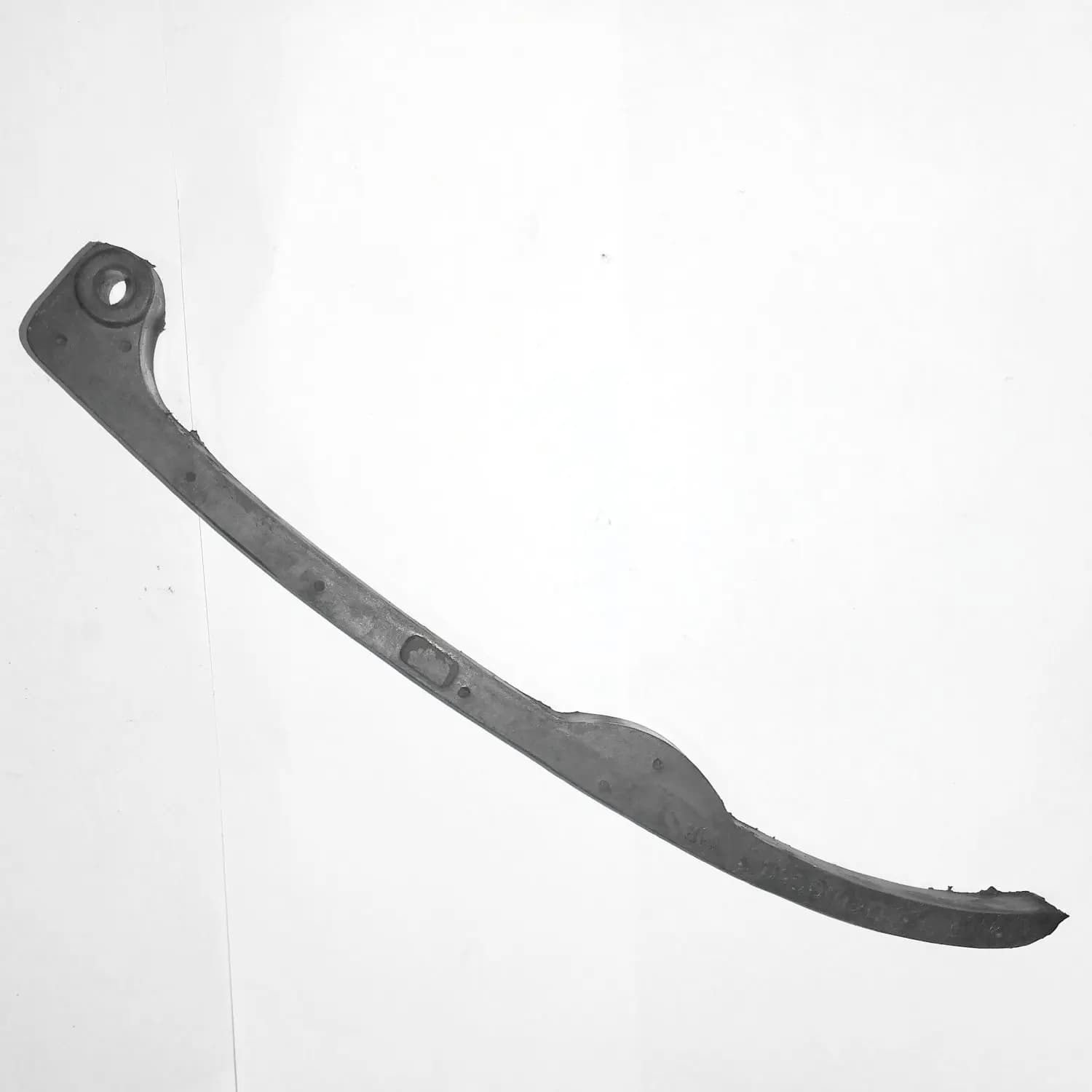

Tensioner Cam chain

Tensioner Cam chain

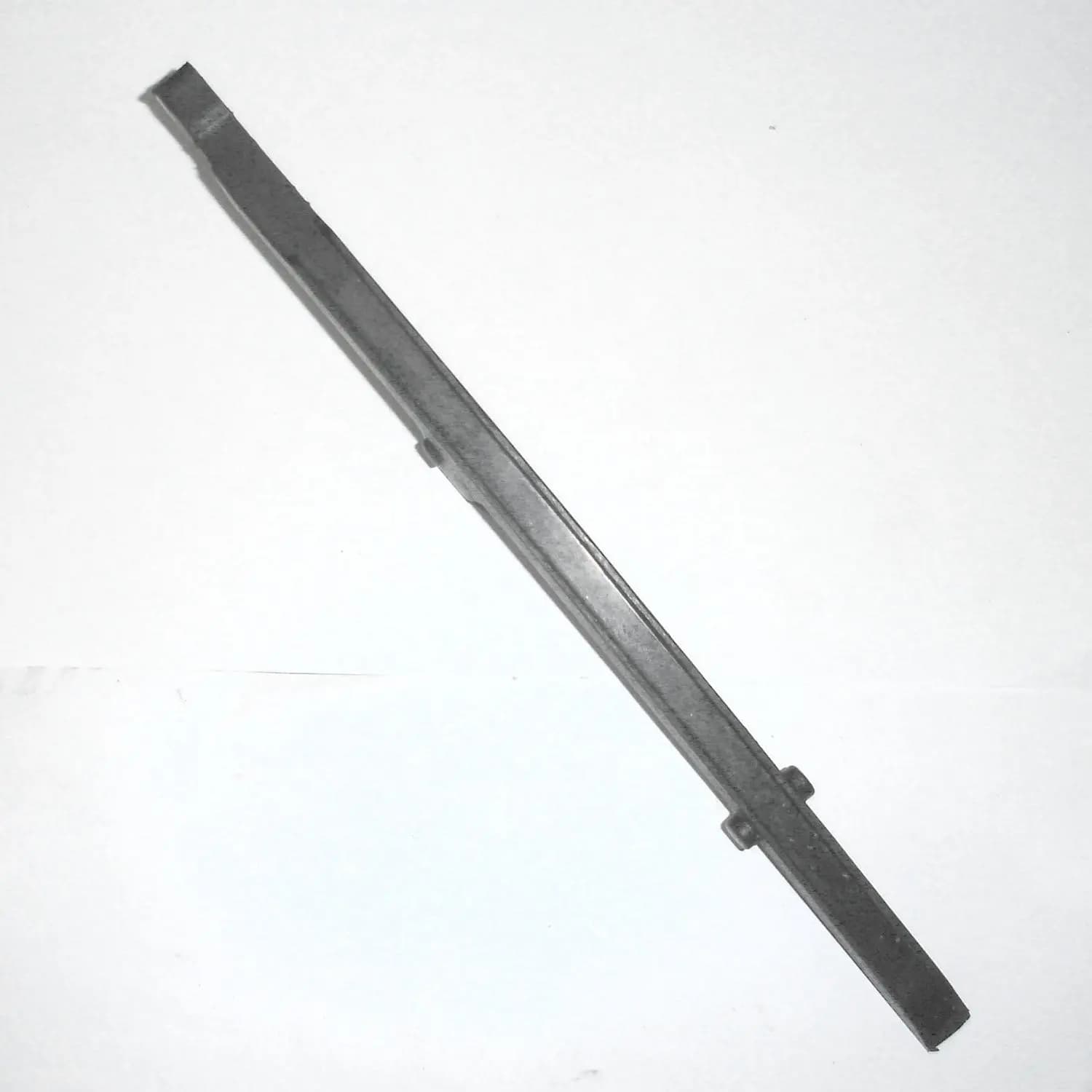

Guide Cam chain

Guide Cam chain

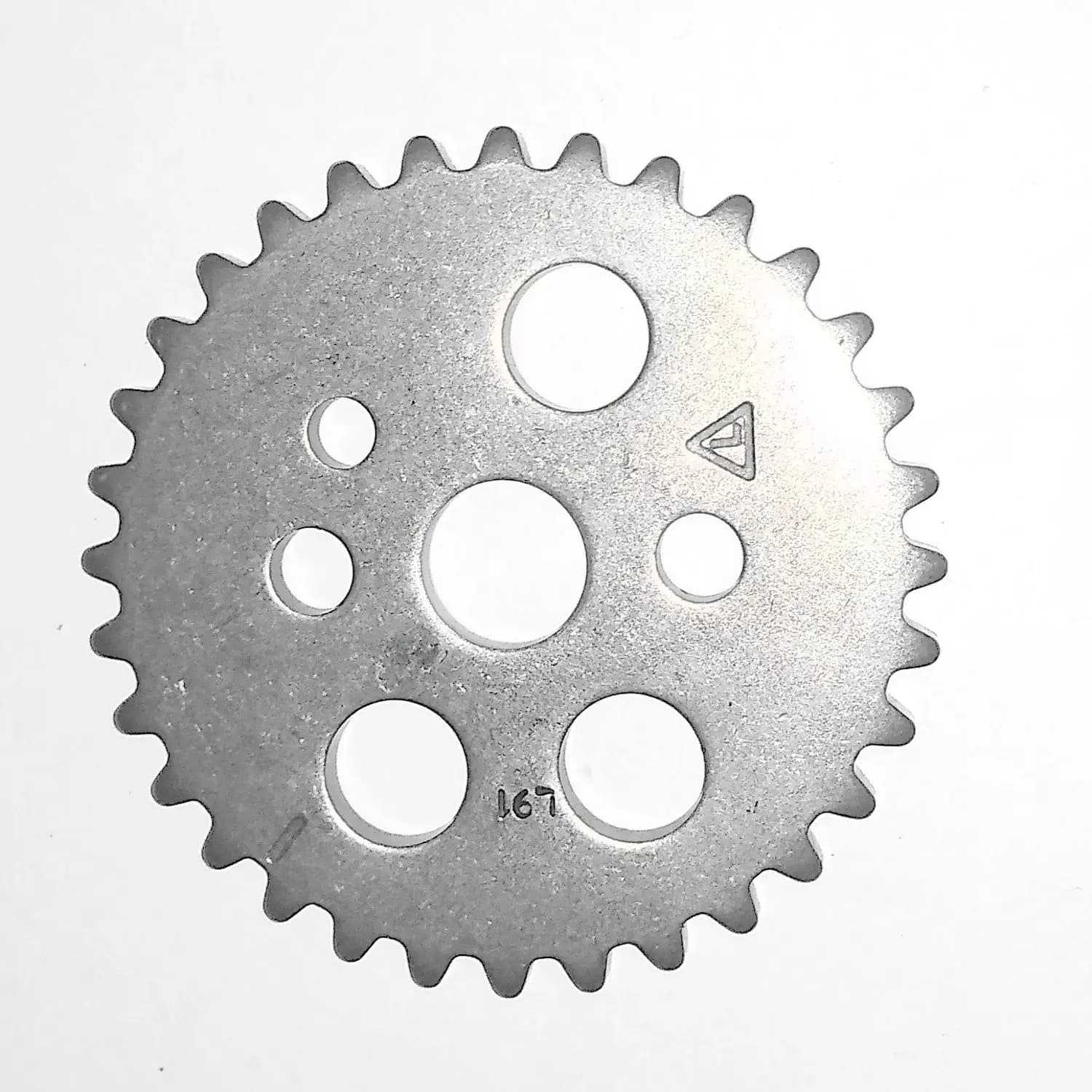

Sprocket Camshaft 32T

Sprocket Camshaft 32T

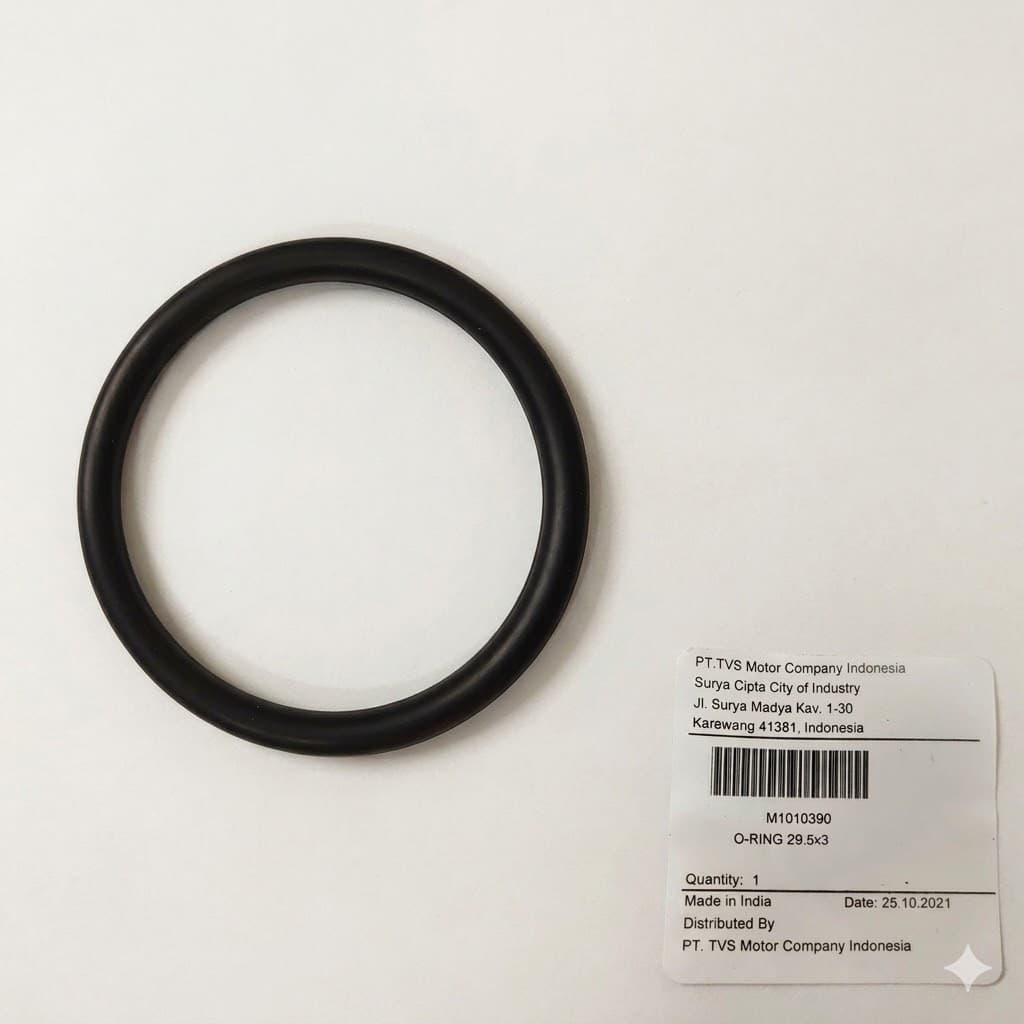

O-Ring 29.5X3

O-Ring 29.5X3

Gasket Cylinder Head

Gasket Cylinder Head
